PURGE SOLENOID VALVE REMOVAL/INSTALLATION [LF, L3]

Home

Uzi Car

id0116c2803500

1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L3].)

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

3. Disconnect the negative battery cable.

4. Remove using the following procedure:

Caution

• Do not disconnect the purge solenoid valve and evaporative hose except when replacing the purge solenoid valve because it may cause evaporative gas leakage. When it is necessary to remove the purge solenoid valve for removing/installing other parts, disconnect the valve at the quick release connector.

(1) Disconnect the evaporative hose at the charcoal canister side.

am3zzw00002346

(2) Remove the bracket shown in the figure.

am3zzw00000991

(3) Pull the vacuum tube from the intake manifold.

am3zzw00002653

5. Install in the reverse order of removal. (See Evaporative Hose Installation Note.)

Evaporative Hose Installation Note

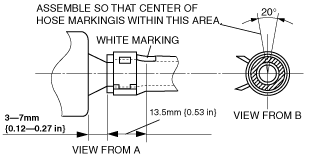

1. Install the evaporative hose and clamp as shown in the figure.

am3zzw00000990

am3zzw00000993
